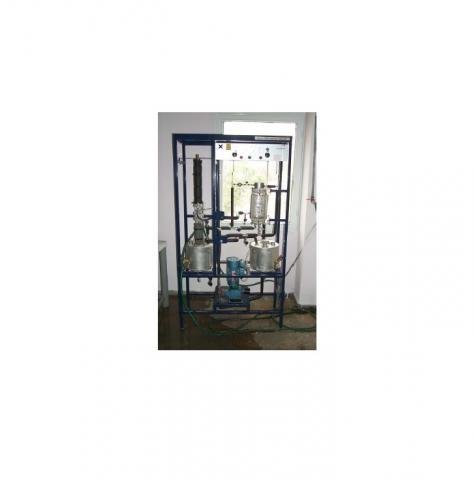

Liquid Liquid Extraction Unit

Specification:

• A glass liquid/liquid extraction column, length 1.2m, diameter 50mm.
• Water feed pump with flow control valve, range 0-800ml/min with 30 litre supply and collection tanks.
• A metering pump, range 0-250ml/min, is used to feed solvent from the14 litre stainless steel tank.
• A stainless steel distillation column comprising four sieve plates in a glass section, a water cooled condenser, a 1kW 5 litre electrically heated boiler and a stainless steel condensate collection tank, is used for solvent recovery.
• All items are mounted in a floor standing welded steel framework.
• The unit is controlled from a panel with diagramatic display of the process with controls at appropriate points on the diagram.
• A comprehensive instruction manual is included.
