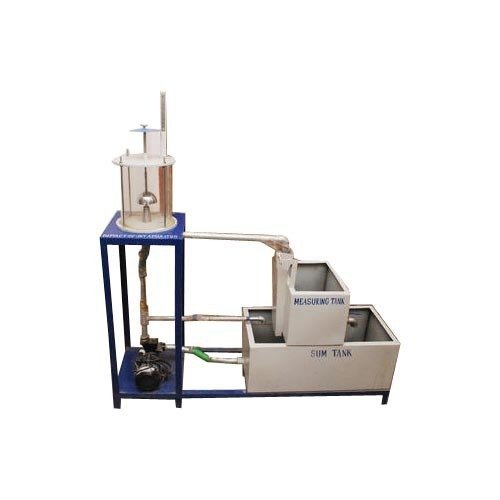

Impact Of Jet Apparatus
It can measure the force generated by a jet of water for a stationary object having a cylindrical acrylic vessel. Water is fed through a nozzle and discharged vertically to strike a target carried on a stem which extends through the cover. Jet’s force is calculated by the simple calculating moments about fixed fulcrum. Theoretically obtained forces are compared with practically obtained forces through moments.
Specifications:
- Set of Nozzle: 4 mm & 8 mm (Brass).
- Set of Vanes: Hemispherical and Flat Plate (Optional Inclined)
- Jet Collection Tank : 250 mm Diameter MOC: Perspex
- Sump tank capacity : 75 litres MOC: SS-304 with Matt Buffing
- Measuring tank : 35 litres MOC: SS-304 with Matt Buffing
- Pump : Monoblock type, 0-60 litre/min, Motor 0.5 HP
- Piping with necessary Valves and Fittings
- Digital Stop Watch with 1/10 second Accuracy
- Detailed Technical Manual and On-site Training
