- Different Measuring Methods For Measuring Humidity

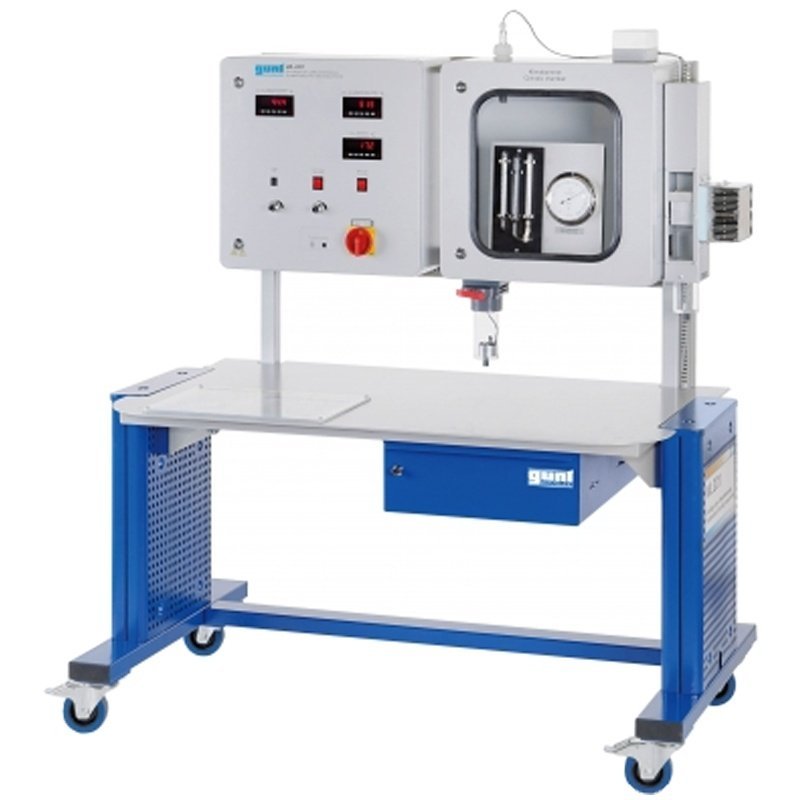

- Climatic Chamber With Adjustable Humidity And Transparent Door
- Humidification Via Ultrasonic Atomiser
- Dehumidification Via Peltier Cooling Element
- Fan For Air Recirculation
- 2 Mechanical Instruments: Psychrometer, Hair Hygrometer
- 2 Electronic Instruments: Capacitive Sensor, Hygrometer With Synthetic Fibre And Combined Temperature Sensor
Technical Data
Humidifier
- Ultrasonic Atomiser
- Power Consumption: 21,6w
- Low Water Cut-Off
- Dehumidifier
- Peltier element
cooling capacity: 56,6W (50°C ambient temperature)
cooling surface: 1.600mm²
Hair hygrometer with deflective needle
- measuring range: 0…100% r. h.
Hygrometer with synthetic fibre
- output voltage: 0…10V
- measuring ranges: 0…100% r. h. / -30…80°C
Capacitive sensor with digital display
- output voltage: 0…10V
- measuring range: 1…100% r. h.
Psychrometer with thermometer
- measuring range: -10…60°C, graduation: 0,5°C
Dimensions and Weight
- L x W x H: 1.250x700x1.930mm
- Weight: approx. 120kg
Required for Operation
- 230V, 50/60Hz, 1 phase
