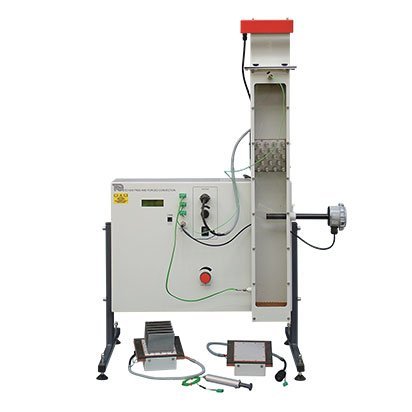

- Demonstration of convective heat transfer
- Air duct with axial fan
- Recording of measured data using electronic sensors
Technical Data
Air duct
- Flow cross-section: 120x120mm²
- Length: 1m
- Max. air velocity: 3,0m/s
- Max. flow rate: 160m3/h
Heating Elements
- Temperature limiting using bimetallic strip at 120°C
- Max. heating capacity: 170W
- Flat plate surface area: 0,014m²
- Pipe bundle surface area: 0,098m²
- Surface area of fins: 0,14m²
Measuring Ranges
- 1x air velocity: 0…10m/s
- Temperature: 2x 0…100°C,
- 1x 0…200°C (thermocouple)
- Power: 0…200W
