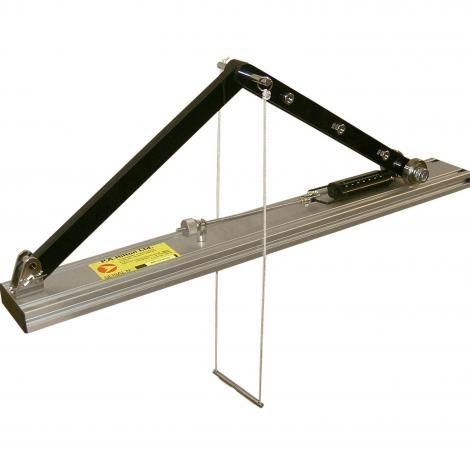

Toggle Joint Apparatus

Toggle Joint Apparatus

Specification:

• Determines the horizontal reaction due to loading a toggle joint mechanism; assesses the effect of the toggle angle.
• The apparatus consists of two pair of links mounted on a base with one end of the links fixed, a central pivoted joint, and the other end restrained by a spring balance to read the resulting horizontal force.
• Loading applied at the apex pivot by a weight hanger.
• Variable toggle angles available, and facility to re-adjust to original state.
• An instruction manual for student and lecturer provided.
• Set of weights.
• 1m ruler supplied
• 2 year warranty
