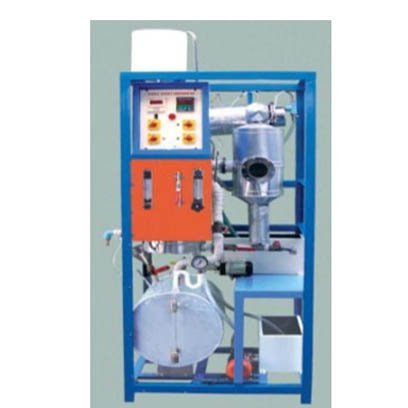

Rising Film Evaporator
Features of Rising Film Evaporator
• Nominal throughput only 10l/h
• Single tube heat exchanger
• Integral CIP system
• Integral control console
• Computer linked for data logging and analysis
Benefits
- Small quantities of liquid products can be concentrated
- Easily cleaned and maintained
- Low product usage eases the disposal of wasteUnit SpecificationsEvaporator tube length: 1.36m
Heat transfer area: 0.06m2
Max. evaporation rate: 10l/h
Max. steam consumption: 15 kg/hr
Max. steam pressure (working): 1.7 bar
Condenser area: 0.17m2
Feed tank capacity max.: 30 litres
Concentrate collecting tank capacity: 5 litres
Condensate collecting tank capacity: 5 litres
CIP Pump (flexible impeller): 8l/m @ 20ft H20
System vacuum: 225mm Hg abs (increased when pump heads in series)
