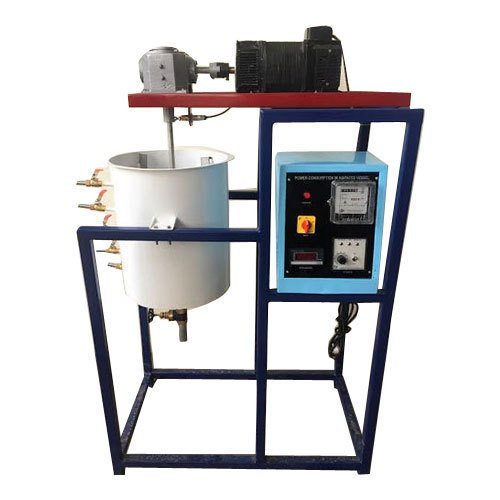

Mechanical Operational LabPower Consumption in Agitated Vessel
Range of Experiments:
- To plot Power number Vs Reynolds number for the given set of impeller with baffled/ unbaffled mixing.
Utilities Required:
- Electricity 500 Watts, 220V, 1 Phase
- Water Supply.
- Drain
Technical Specifications:
| Tank |
: Material Stainless Steel. Dia. 300mm, Depth 450mm |
| Stirrer |
: Stainless Steel Impeller with Stainless Steel Shaft coupled to FHP |
|
DC Motor and Thyristor controlled DC Drive. |
| Agitator |
: Stainless Steel shaft & impellers (i.e. one propeller & one turbine) |
| Baffles |
: Material Stainless Steel, 4 Nos. 50mm width. (detachable). |
| Control Panel Comprises of: |
| RPM Measurement |
: Digital RPM Indicator, Non Contact type with Proximity sensor. |
| Digital Voltmeter |
: 0-300 Volts |
| Ammeter |
: 0-5 Amps. |
| Standard make on/off switch, mains indicator etc. |
| Instruction Manual |
: An ENGLISH instruction manual will be provided along with the Apparatus |
| A good quality painted rigid MS Structure is provided to support all the parts |
