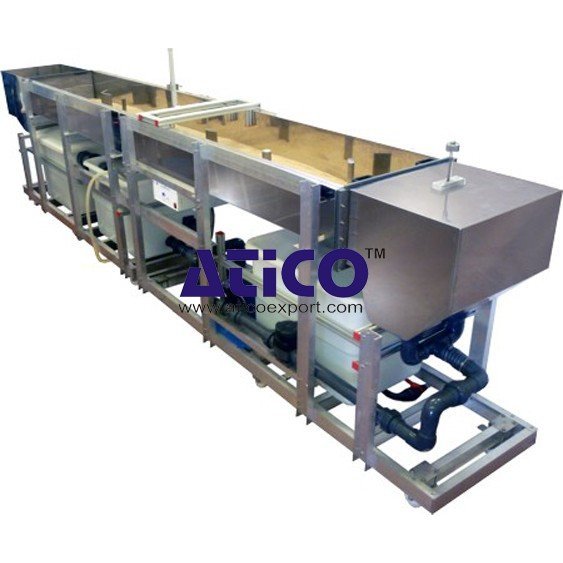

Mobile Bed and Flow Visualisation Tank

Specification

• A self-contained recirculating water tank for flow visualisation and mobile bed studies.
• The tank is manufactured from glass-reinforced plastic and all components in contact with water are of non-corroding materials.
• The working section has minimum dimensions of 2m(4m) x 610mm and the flow range is 0-3.5 litres/sec.
• Fifteen models and accessories are included as standard and a sheet of coloured glass allows rapid changeover from mobile bed to flow visualisation mode.
• All controls are housed in a portable console which includes a flexible cable and water safe connectors.

 Technical Specification

Working area: 2 metres x 610mm or 4 metres x 610mm Max water depth: 120mm Thickness of sand bed: 60mm Flow range: 0-3.5 litres/sec Sump capacity: 300 litres Accuracy of flow metering: ±1.5% of full scale deflection
