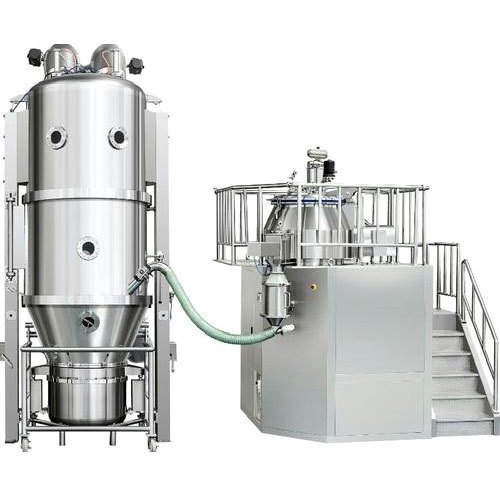

Mixer Granulator Drier

Mixer Granulator Drier Manufacturer and Supplier In Kenya

Mixer Granulator Drier Objectives:

• To study the mixture unitary operation.
• To study the wet process granulation unitary operation.
• To study the drying (by conduction and vacuum) unitary operation.
• To study the influence of different binding materials on wet process granulation.
• To study the parameters influence on this process (stirring, speed, temperature, pressure).

Technical specifications

1 – Vat :

• A 316L stainless steel vat (hemispheric bottom) provided with right shroud and a conical upper bottom. It include a 316 stainless steel double jacket.

2 – Cover :

The cover includes:

• An observation windows with lighting.
• A sleeve nut on the vat for implantation of a Pt100 temperature probe.
• A vacuum connecting pipe with quick-connect fitting.
• A sleeve nut for manometer.
• A threaded pipe of (dia. ¼’’) for installation of an exhaust valve and a vacuum breaking valve.
• A pipe with quick-connect fitting (SMS 51) for powders and liquids filling.
• A pipe with quick-connect fitting (clamp 25) for filter installation

3 – A fast plunging disperser :

• Fixed on the upper flange

4 – A three-bladed anchor :

• Fixed to the central part of the cover

5 – A steel and painted table equipped with 4 wheels :

• Telescopic guiding column

6 – Electrical equipment and control cabinet

Options:

• This equipment requires the heating unit and the vacuum generator .

Dimensions and weight

• 1000 x 1000 x 1900 mm
• Weight : approximately 200 kg

Essential requirements

• Power supply: 3,5 KW – 220V mono.
