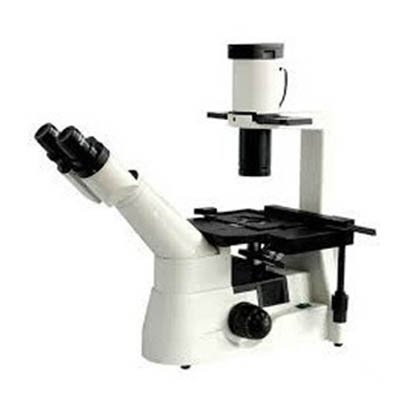

Inverted Trinocular Microscope

Specification

Plan PL 10x, 20x, S40x IOS infinity corrected objectives

Pair EWF 10x/22 mm eyepieces

Trinocular head, 45° inclined tubes, Interpupillary distance 54-75 mm

Diopter adjustment on left eyepiece

Reversed quintuple revolving nosepiece on ball-bearings

250 x 230 mm stage

N.A. 0.30 condenser with iris diaphragm and filter holder, working distance 72 mm

Transmitted 5W LED, intensity adjustable with internal power supply 100-240 V (CE)

Supplied with power cord and aluminium box

Complete with

Plan LWD 4x/0.13 IOS objective, corrected for 1.2 mm

1.3 MP digital USB-2 camera with 1/3 inch CMOS sensor
