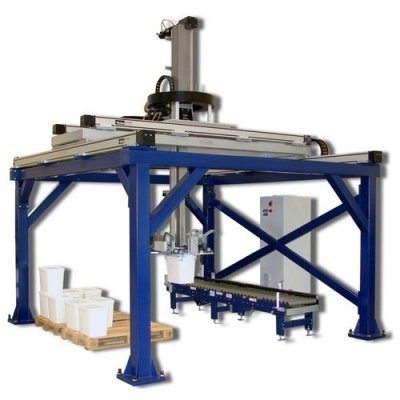

Mechanically welded fame with protective grille enclosure including:

• A table with rollers for the supply of the palletizer.
• A palletization table actuated by an hydraulic lifting jack of diameter 50 mm and secured by a balancing valve.
• A loading device actuated by a translation hydraulic jack.
• A table with rollers for the emptying of the pallets.
• Access to the machine by a door with a door electric contact and a key locking device.

A separated hydraulic power station including:

• A motor-pump device 0,75 kW, 3 liters/minute, pressure: 80 bars.
• A tank of 28 liters equipped with a visual level, with thermometer,an air filter, a filling and draining plugs, and a backflow filter.
• A pressure limiter.
• A pressure gauge.
• Three electro-hydraulics distributors.
• Two flow limiters.
• A set of hydraulic cables.
• A set of protective hydraulic plugs.

A control cabinet equipped of:

• A PLC Schneider NANO including 9 inputs and 7 outputs, a UNITEL WAY port and a RS485 MOD-BUS port.
• An interactive terminal MAGELIS XBTP, 2 lines of 16 characters and 12 keys functionsA magneto thermal starting and protection system for the motor starting.
• A safety logic block (PREVENTA or equivalent) to manage the openings of the doors.

Front view

• A power on light.
• An emergency stop button.
• A padlocked disconnecting switch.
• A power on button.
• Predisposition for the electric actuator.
• Predisposition for the pneumatics pre-actuators and the electric actuator.

Technologies of the detectors

• Opto-Electronic.
• Inductive of proximity.
• Safety detection with key for the doors.

Technologies of the actuators: Industrial Palletizer Tri Tech

Hydraulic technology:

• The equipment is equipped of origin with hydraulic actuators on the loading device and on the palletization table. These actuators can be replaced, respectively, by a pneumatic and an electric equivalent.

Electric technology:

• The package is provided with a replacement kit of the palletization hydraulic jack (jack of the table) by an electric jack. It is supplied with all the connecting accessories.

Pneumatic technology:

• The package is supplied with a replacement kit of the table loading hydraulic jack by an pneumatic jack equipped with a flow limiter. It is supplied with all the connecting accessories, an FRL plate with a safety solenoid valve, a pneumatic distributor.

Supplied with the machine:

• 15 steel plates: thickness 4 – 400 x 400 mm.
• 15 panels of “Medium”: thickness 20 – 400 x 400 mm.
• The technical manual.
• The training manual, dedicated to Maintenance.
• ” Breakdowns” Kit, including some real, deficient components.
• 1 deficient hydraulic jack.
• 1 distributor coil in short circuit.
• 1 deficient distributor (worn-out slide).
• 1 deficient limit switch.
• 1 deficient inductive sensor.
• 1 deficient safety lock.

Options:

• Subsystems for technological studies.
• Complementary lift table.
• Complementary hydraulic power station.
• Complementary hydraulic Jack.

Supervision:

• The software communicates in MOD BUS by a RS485 link with the PLC. It allows mainly the access to the parameterization by various application windows and a data historization of the alarms.

Dimensions and weight

• (L x l x w): 4600 x 1600 x 1700 mm – 450 kg.
