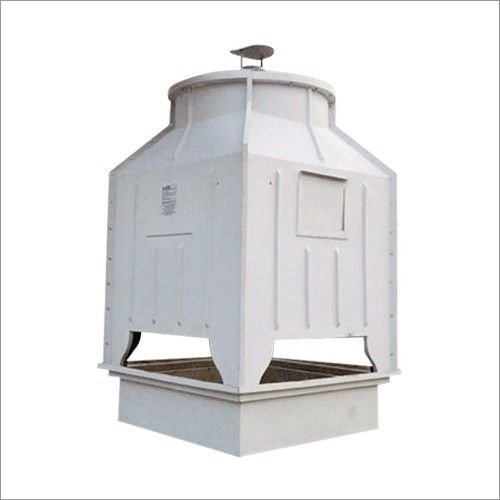

Forced Draught Cooling Tower

Forced Draught Cooling Tower

Range Of Experiments

Forced Draught Cooling Tower

• To determine Volumetric mass transfer coefficient ( hd.a ) for air, water
• system in a cooling tower.
• To study the temperature distribution along the height of the tower.
• The experiments can be conducted at various flow rates of Air & Water & calculation can be made accordingly.
• Experiment can be conduct on both Induced & Forced Draught condition.
• To determine & compare the efficiency of the tower from Induced & Forced Draught condition.

Experimental Setup :

• Heater Assembly.
• Cooling Tower size : 300 mm x 300 mm x 1200 mm.
• Packing : Expanded wire mesh (Two sets).
• Rotameter : 1.1 – 11 LPM to measure inlet water flow.`

Induced draught axial flow fan.

• Blower : Centrifugal type 3 HP.
• Orificemeter : To measure air flow.
• Water circulating pump.
• Set of thermocouples.

Control Panel :

• 12 Channel Digital Temperature Indicator
• Switches for Pump, axial fan, heater,Etc.
• Main On/Off Switch for blower.
