Equilibrium of Forces

Equilibrium of Forces

Specification:

• The forces produced by cords tensioned by weights on hangers
• To use pulleys on the perimeter of the Universal Frame and Stand (sold separately) to turn the cords vertically downward
• The lines of force to be transferred onto A1 paper sheet (not supplied) clipped to the force board

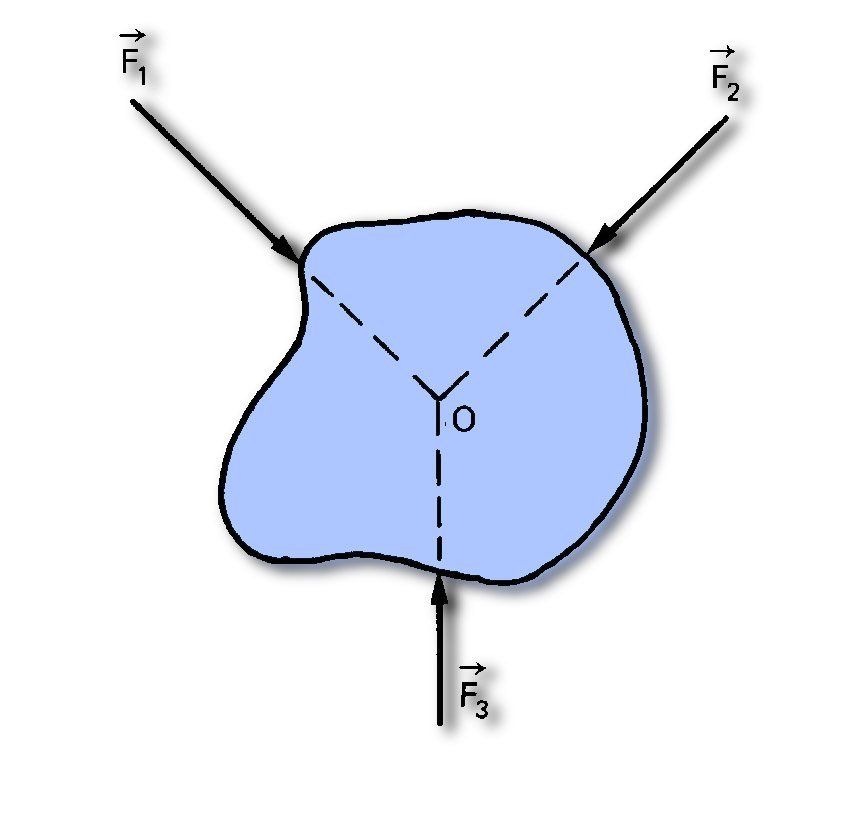

• Single and double cord rings offer the alternatives of concurrent and non-concurrent forces
• Comprehensive technical manual for student and lecturer and text book provided
• Calibrated weights set and hangers supplied
• Must be used with universal Frame and Stand (sold separately)
• Comprehensive instruction manual provided
