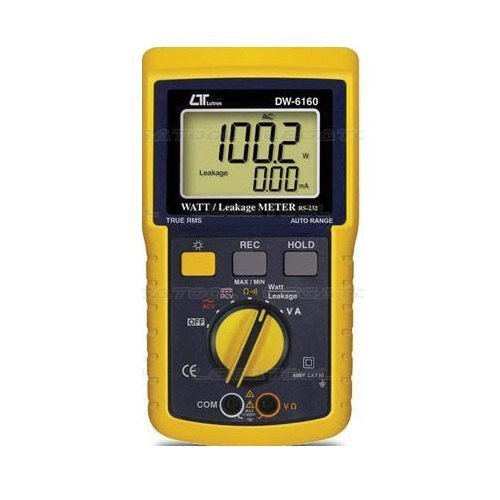

Digital Watt Meter

Digital  Watt  Meter

Features :

LSI-circuit provides high reliability & durability

Measurement : Watt, ACV, ACA and Power factor

21.8 x 8.5mm large LCD and Max. reading 9999

Fully Auto range and zero adjustment facility

Memory record, recall and data hold function

Built in low battery indicator

Technical Specifications :

Watt ( True power ) : 0 ~ 6000 W

Accuracy : ±(1%+5W), Resolution : 1W

ACV (True RMS) Range : 0 ~ 600V

Accuracy : ±(0.3% + 0.3V)  Resolution : 0.1V

ACV input impedance : 10MΩ

ACA ( True RMS ) range : 0.01 ~ 10A

Accuracy : ±(0.3% + 0.03A)  Resolution : 0.01A

Power factor range : 0.01 ~ 1.00

Accuracy : ±(1% + 2d), Resolution : 0.01

Data output : RS 232 / USB PC interface

Sampling time : Approx. 1 second

Dual value display with backlight facility

Power : DC 9 V Battery
