Educational TrainersDc Compound Motor And Generator Trainer

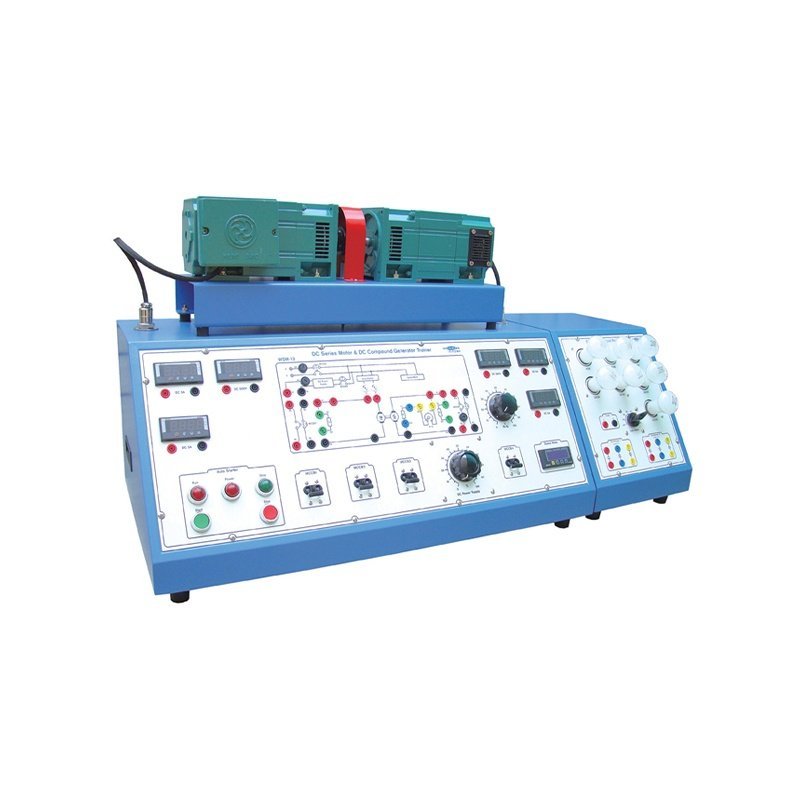

Dc Compound Motor & Generator Trainer
Features :
- Construction of DC motor and winding resistance measurement
- Starting method of shunt motor & speed control
- Non-load characteristic experiment of shunt generator
- Load characteristic experiment of shunt & compound generator
- Load characteristics experiment of shunt, series and compound motor
- Efficiency measurement of shunt motor by loss separation method
- Forward and Reverse operation method of DC Motor
Technical Specifications :
- Control Board :
- Power : 1 phase, AC
- DC Voltage Meter : 2 EA
- DC Ampere Meter : 2 EA
- Power Lamp : 1 EA
- MCCB : 4 EA
- Auto Starter : 1 Set
- Digital Speed Meter : 1 EA
- Speed Detector : 1 EA
- DC Power Supply : 1 Set
- Electric Machine Assembly : 1 Set
- Style : Steel, Portable Type
Electric Machine : DC Compound Motor & Generator
- Voltage : DC 200 V
- Output : 360 Watt ( 1/2 H P )
- Number of Pole : 2 Poles
- Excitation : Compound
- Rating Speed Counter : 1500 rpm
- Style : Semi-enclosed type
