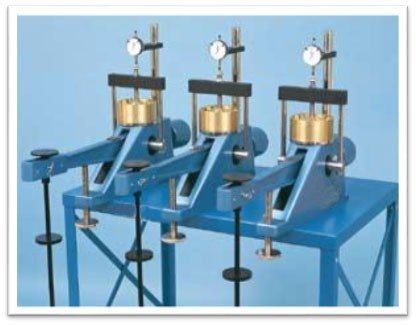

Consolidation apparatus (set of 3 mounted frames on a metallic table)

Specification:-

• The oedometer accepts cells up to 100 cm2
• The load bridge group is supported in high accuracy self-aligning seat balls.
• The beam provides three loading ratio: 9:1 10:1 11:1 and the beam assembly is fitted with an adjustable counterbalance weight.
• Supplied complete with rod holding the weights and coupling block holding the dial gauge or transducer.
• Rigidly manufactured from aluminium alloy
• Maximum load: 170 kg of slotted weights, corresponding to 1870 Kg using the beam ratio 11:1
• Front loading oedometer
• DIAL GAUGE 12 mm travel x 0,002 mm subdiv.
• DIAL GAUGE 10 mm travel x 0,01 mm subd. For vertical displacements.
• Accessories
