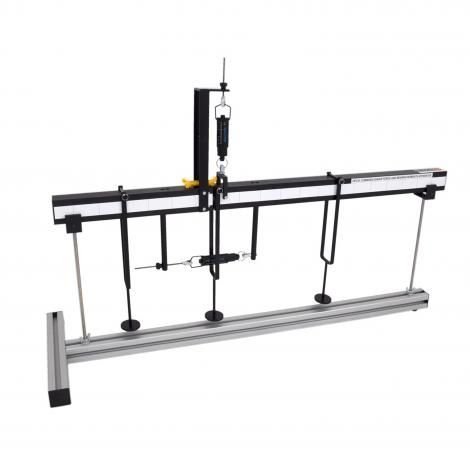

Bending Moment in a Beam

Bending Moment in a Beam

Technical Description:

• To consist of 2 simple supports; a rigid aluminium alloy beam cut into two unequal lengths, with a frictionless hinge at the joint which restricts vertical movement, whilst allowing bending
• Beam lengths of 600 and 300mm
• Electronic force transducer measures direct force at the ‘cut’ section and output fed directly into Interface (sold separately)
• Moment lever arm mechanism allows bending moment to be calculated
• Multiple load positions achievable
• Set of slotted calibrated weights included
• Load hangers supplied
• Must be used with universal Frame and Stand (sold separately)
• Must be used with Interface (sold separately)
• Comprehensive instruction manual provided
