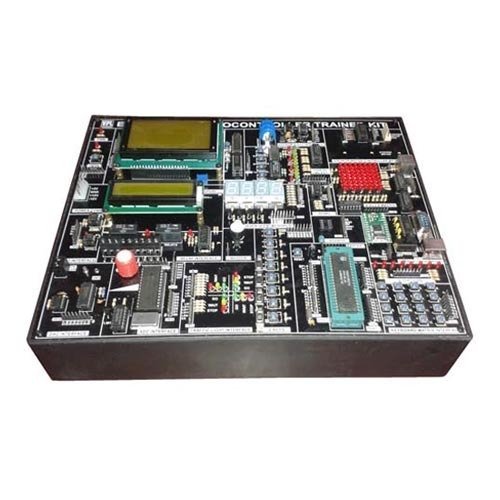

8 Bit Microprocessor Emulation 8051 Trainer

8 Bit Microprocessor Emulation 8051 Trainer

FEATURES of 8 Bit Microprocessor Emulation 8051 Trainer :

Integration Development Environment Program

Source Code Editing, Assembling, Compiling & Program writing In one powerful environment

C Language, Assembling Source code debugging function Source level debugging function

Code memory disassemble function 8051 Register & internal / external memory dump and Editing function

Pop-Up menu display

Program stop function

Program debugging through breakpoint, & Trace 89c51 Write function

Various I/O port experimen

Dot Matrix experiment

D C Motor experiment by D/A converter

Volt Meter experiment by A/D converter

Sound experiment

User Program start address : 0000H (reset vector)

89C51 Read / Write / Verify function

Stand alone mode with Built in Keyboard & LCD

LCD display ( 16 X 2 Lines )

+5V,  +12V,  -12V,  S.M.P.S. (free voltage) power

Wood / Plastic case

Cooling fan (+12V)

SPECIFICATIONS :

P C operation program : Integration Development Environment Program

Micro controller : 8031 / 8051 / 8751 / 89C51 compatible

Main Ram : 32 KB (62256)

Monitor Rom : 32 KB (27256)

Display Unit : LCD display (16 X 2 Line )

I/O port : CPU I/O Port,  8225A X 1

Serial port : RS – 232C

User Program start address : 0000H (reset vector

Dot Matrix LED : 8 X 8 ( 3 Color)

Keyboard : 16 keys for data,

8 keys for function

Software : 8051 Assembler, C-Complier, IDE : Emulation software

IDE Program :  Display 8051 internal architecture

Source code editing, Assembling, Compiling & Program writing

Code memory disassemble

8051 Register & internal / External memory dump and Editing function

Source level debugging function

Pop-Up menu

Program stop function by “ESC” key

89C51 Write function

A/D, D/A converter :  ADC : ADC0804

DAC : DAC0800

Motor : D C motor

Sensor : Photo interrupter

1 Speaker

Step motor interface circuit : Driver T. R. x 4

Expansion connector : System bus 34 Pins x 1

CPU I/O Pins 34 x 1

External interface 30 Pins x 1

89C51 Read / Write / Verify / Eras
